K160

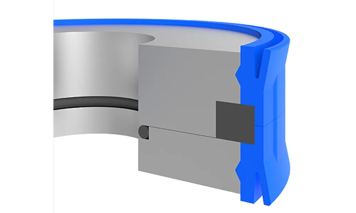

K160 - Pneumatic Piston Seal
![K160 - Pneumatic Piston Seal](https://kastas.com.tr/cdn-cgi/image/quality=80,fit=contain,width=356,height=213/media/uploads/product_images/K160_Kesit.webp?ver=1.3)
K160 pneumatic piston seal is a polyurethane sealing element that can be used back to back with a magnet and has a specially designed nutring structure. Note: It can be produced up to Ø25 mm bore diameter. * Misc. parts in the visual such as magnet and aluminum are not included to K160. The SKU consists of the TPU sealing ring
Advantages
Area of Application
Advantages
• Position control due to magnet
• Suitable for short stroke cylinders
• Cushioning feature
• Low friction
• Suitable for short stroke cylinders
• Cushioning feature
• Low friction
Area of Application
• Recommended for use in cylinders according ISO and CETOP.
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
PU
PU9204
16
-30/+100
1.0
