K58
K58 - Pneumatik Komplettkolben mit Magnet und Führung
K58 pneumatic piston seal is a double acting sealing element consisting of aluminum body, polyurethane urings that provide sealing, POM bearing, o-ring for static sealing and magnet.
Vorteile
Anwendungsbereich
Vorteile
• Complete piston head
• Leightweight aluminium body
• Superior positioning ability with its magnet at high speeds
• High friction resistance
• No additional guide ring requirement thanks to compact design
• High friction resistance
• Long service life
• Its design with venting passages provides end-of-stroke cushioning
• Leightweight aluminium body
• Superior positioning ability with its magnet at high speeds
• High friction resistance
• No additional guide ring requirement thanks to compact design
• High friction resistance
• Long service life
• Its design with venting passages provides end-of-stroke cushioning
Anwendungsbereich
• Position controlled pneumatic cylinders
• Recommended for use in cylinders according ISO standards.
• Recommended for use in cylinders according ISO standards.
Material
Code
Pressure
(max) bar
(max) bar
Temperature
(max) °C
(max) °C
Sliding Speed
(max)- m/s
(max)- m/s
PU, POM
ALIMINUM
MAGNET, NBR
ALIMINUM
MAGNET, NBR
PU9201, PM9901
AL9901, MK9901
NB7001
AL9901, MK9901
NB7001
16
-30/+80
1.0

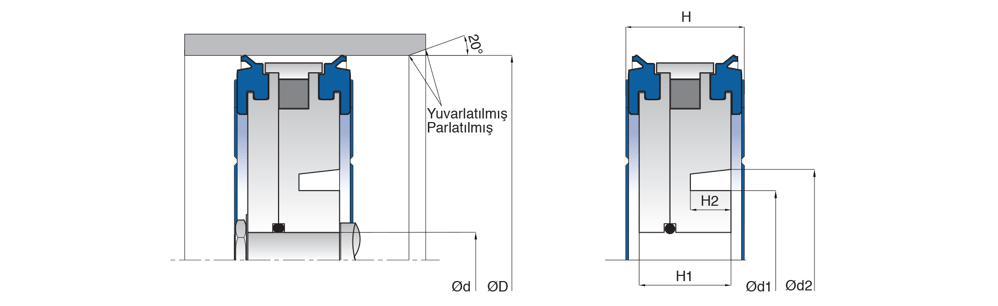

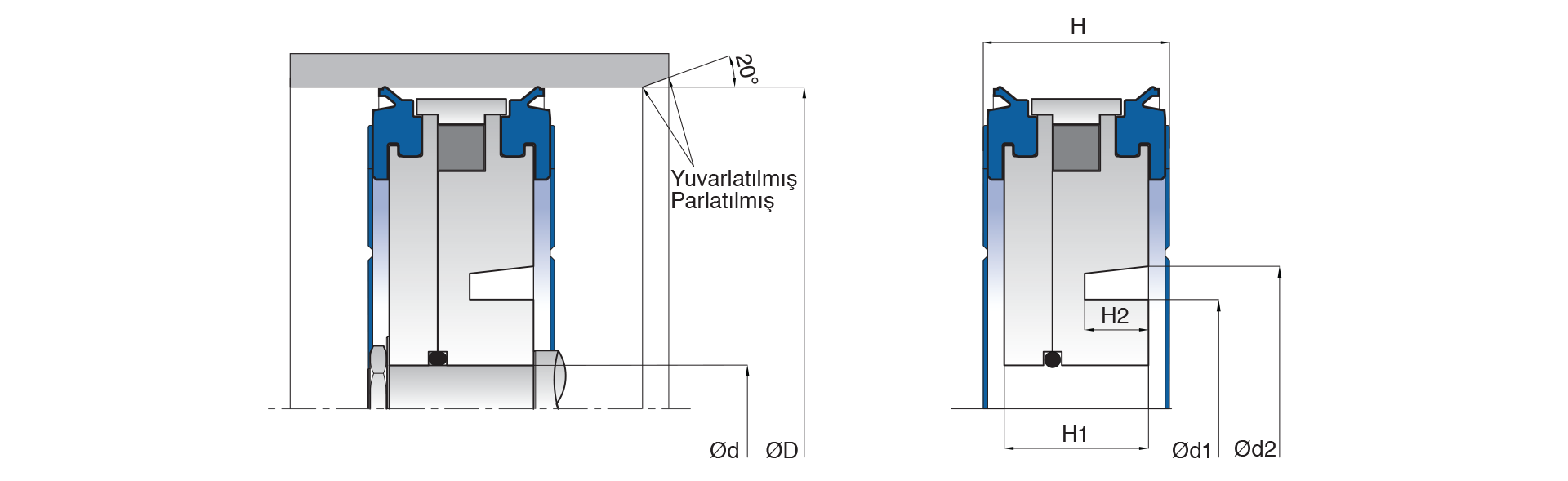

D (H11) | d (f8) | d1 (+0.2/-0) | d2 (+0.2/-0) | H | H1 | H2 | MATERIAL | Kastaş CODE | ||
---|---|---|---|---|---|---|---|---|---|---|
K58-032 | 32 | 8 | 16.3 | 20.7 | 14.5 | 10.65 | 5.2 | PU9201 | 10022060 | |
K58-040 | 40 | 8 | 21.4 | 26.5 | 15.2 | 11.7 | 5.8 | PU9201 | 10022070 | |
K58-050 | 50 | 10 | 27.3 | 33.1 | 16 | 12.15 | 5.1 | PU9201 | 10022078 | |
K58-060 | 60 | 10 | 25 | 30.8 | 19.2 | 15.85 | 5 | PU9201 | 10022085 | |
K58-063 | 63 | 10 | 28 | 33.8 | 19.2 | 15.85 | 5 | PU9201 | 10022087 | |
K58-080 | 80 | 12 | 29 | 34.4 | 22 | 17.5 | 8.5 | PU9201 | 10022094 | |
K58-100 | 100 | 17 | 39.6 | 46.8 | 25.5 | 20 | 8.85 | PU9201 | 10022103 |
