K04
K04 - 杆填料
K04 连杆填料是一种单作用连杆密封组件，由一个封头环、三个织物弹性体环、两个弹性体环和一个织物弹性体背环组成。
优势
应用领域
优势
- 可在重负荷条件下工作
- 采用多唇结构，即使表面粗糙也能正常工作
- 由于可在开放式凹槽中使用，因此外壳高度可调
- 快速安装和拆卸
- 使用寿命长
- 在低压和高压下均具有良好的密封性能
- 采用多唇结构，即使表面粗糙也能正常工作
- 由于可在开放式凹槽中使用，因此外壳高度可调
- 快速安装和拆卸
- 使用寿命长
- 在低压和高压下均具有良好的密封性能
应用领域
- 钢铁工业
- 船舶液压
- 压力机
- 重型油缸
- 采矿业
- 船舶液压
- 压力机
- 重型油缸
- 采矿业
材料
代码
压力
(max) bar
(max) bar
温度
(max) °C
(max) °C
滑动速度
(max)- m/s
(max)- m/s
NBR
织物 NBR
POM
织物 NBR
POM
NB9001
FB8001
PM9903
FB9001
FB8001
PM9903
FB9001
400
-30/+100
0.5

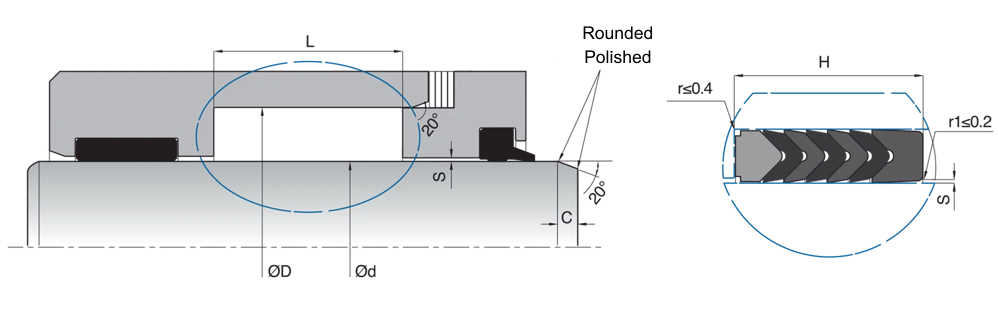

| d (f8) | D (H9) | L (+0.2/-0) | H | 横截面 | E | C | 材料 | Kastaş 代码 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| K04-012 | 12.75 | 25.4 | 19.05 | 19.05 | 6.33 | - | 4 | FB8001 | 10000642 | |
| K04-019 | 19.05 | 28.5 | 17.46 | 17.46 | 4.73 | - | 4 | FB8001 | 10000643 | |
| K04-020 | 20.62 | 33.32 | 33.32 | 33.32 | 6.35 | - | 4 | FB8001 | 10000644 | |
| K04-022 | 22.22 | 34.92 | 19.05 | 19.05 | 6.35 | - | 4 | FB8001 | 10000645 | |
| K04-031 | 31.75 | 44.45 | 25.4 | 25.4 | 6.35 | - | 4 | FB8001 | 10000647 | |
| K04-038 | 38.1 | 50.8 | 25.4 | 25.4 | 6.35 | - | 4 | FB8001 | 10000649 | |
| K04-038/1 | 38.1 | 53.98 | 25.4 | 25.4 | 7.94 | - | 4 | FB8001 | 10000652 | |
| K04-044 | 44.45 | 57.15 | 25.4 | 25.4 | 6.35 | - | 4 | FB8001 | 10000653 | |
| K04-044/1 | 44.45 | 63.5 | 38.1 | 38.1 | 9.53 | - | 6 | FB8001 | 10000656 | |
| K04-044/2 | 44.45 | 69.85 | 50.8 | 50.8 | 12.7 | - | 8 | FB8001 | 10000657 | |
| K04-050 | 50.8 | 63.5 | 25.4 | 25.4 | 6.35 | - | 4 | FB8001 | 10000659 | |
| K04-050/1 | 50.8 | 65 | 25.4 | 25.4 | 7.1 | - | 4 | FB8001 | 10000662 | |
| K04-050/2 | 50.8 | 66.67 | 25.4 | 25.4 | 7.94 | - | 6 | FB8001 | 10000663 | |
| K04-050/3 | 50.8 | 69.85 | 25.4 | 25.4 | 9.53 | - | 6 | FB8001 | 10000665 | |
| K04-053 | 53.98 | 69.85 | 28.5 | 28.5 | 7.94 | - | 6 | FB8001 | 10000666 | |
| K04-057 | 57.16 | 76.2 | 25.4 | 25.4 | 9.52 | - | 6 | FB8001 | 10000667 | |
| K04-057/1 | 57.15 | 73.025 | 31 | 31 | 7.94 | - | 6 | FB8001 | 10000671 | |
| K04-063 | 63.5 | 76.2 | 28.5 | 28.5 | 6.35 | - | 4 | FB8001 | 10000672 | |
| K04-063/1 | 63.5 | 78 | 41 | 41 | 7.25 | - | 4 | FB8001 | 10000674 | |
| K04-063/2 | 63.5 | 79.37 | 28.5 | 28.5 | 7.94 | - | 6 | FB8001 | 10000675 | |
| K04-063/3 | 63.5 | 82.55 | 28.5 | 28.5 | 9.53 | - | 6 | FB8001 | 10000677 | |
| K04-069 | 69.85 | 88.9 | 31.75 | 31.75 | 9.53 | - | 6 | FB8001 | 10000680 | |
| K04-076 | 76.2 | 88.9 | 25.4 | 25.4 | 6.35 | - | 4 | FB8001 | 10000681 | |
| K04-076/1 | 76.2 | 95.25 | 31.75 | 31.75 | 9.53 | - | 6 | FB8001 | 10000685 | |
| K04-076/2 | 76.2 | 101.6 | 38.1 | 38.1 | 12.7 | - | 8 | FB8001 | 10000688 | |
| K04-082 | 82.55 | 101.6 | 31.75 | 31.75 | 9.53 | - | 6 | FB8001 | 10000689 | |
| K04-088 | 88.9 | 104.8 | 28.5 | 28.5 | 7.95 | - | 6 | FB8001 | 10000691 | |
| K04-088/1 | 88.9 | 107.95 | 30.16 | 30.16 | 9.53 | - | 6 | FB8001 | 10000692 | |
| K04-088/2 | 88.9 | 114.3 | 38.1 | 38.1 | 12.7 | - | 8 | FB8001 | 10000695 | |
| K04-095 | 95.25 | 114.3 | 30.16 | 30.16 | 9.53 | - | 6 | FB8001 | 10000696 | |
| K04-101 | 101.6 | 127 | 38.1 | 38.1 | 12.7 | - | 8 | FB8001 | 10000697 | |
| K04-107 | 107.95 | 127 | 31.75 | 31.75 | 9.53 | - | 6 | FB8001 | 10000699 | |
| K04-107/1 | 107.95 | 130.18 | 38.1 | 38.1 | 11.12 | - | 6 | FB8001 | 10000700 | |
| K04-114 | 114.3 | 133.36 | 31.75 | 31.75 | 9.53 | - | 6 | FB8001 | 10000702 | |
| K04-114/1 | 114.3 | 139.7 | 38.1 | 38.1 | 12.7 | - | 8 | FB8001 | 10000703 | |
| K04-127 | 127 | 158.75 | 60 | 60 | 15.88 | - | 8 | FB8001 | 10000705 | |
| K04-209 | 209.55 | 228.6 | 38.1 | 38.1 | 9.52 | - | 6 | FB8001 | 10000708 |
